E5105gray(Special membrane materials for environmental protection engineering)

E5105gray(Special membrane materials for environmental protection engineering)



  • Features:Lacquered with imported PVDF materials assure the easy-clean and durable dirt resistance qualities,panama base fabrics give high tensile and tear strengths.Good flame retardant,anti-UV,anti-mildew,high abrasion resistance.
Contact Us

More Information

Technical

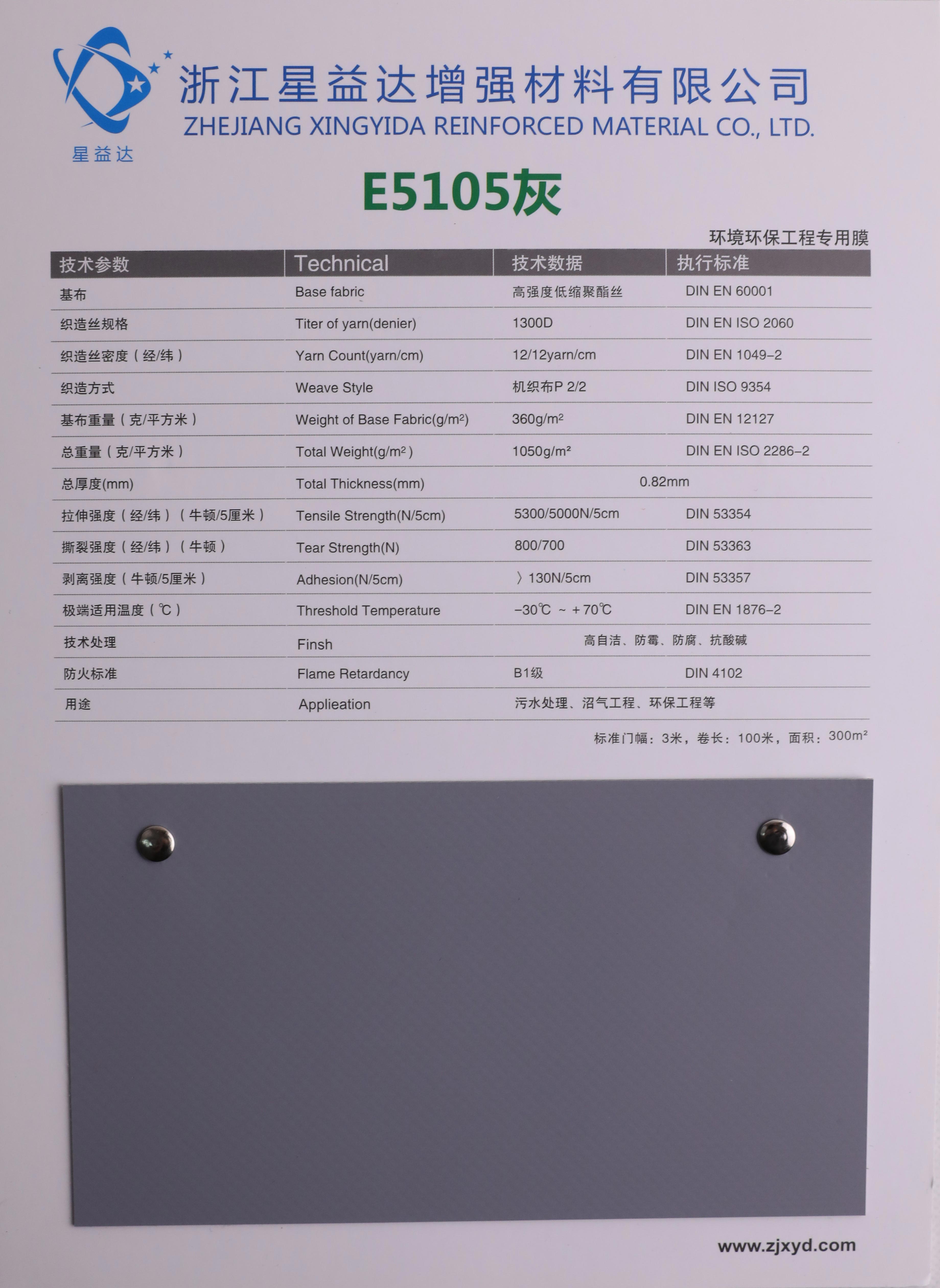

Technical data

detection basis

Base Fabric

100% polyester

DIN EN 60001

Total Weight(gsm/㎡)

1050gsm/㎡

DIN EN ISO 2286-2

Total Thickness(mm)

0.82mm

Tensile Strength(Warp/Weft)(N/5cm)

5300/5000N/5cm

DIN 53354

Tear Strength(Warp/Weft)(N)

800/700N

DIN 53363

Adhesion(N/5cm)

>130N/5cm

DIN 53357

Threshold Temperature

-30℃/+70℃

DIN EN 1876-2

Surface Treatment

PVDF/Acrylic

Flame Retardancy(can be customized)

B1

DIN4102
